Measured building surveys: request a quote
Floor plans, elevations and sections of existing buildings, drawn to the scale and detail your project needs.
Sheet 01 · Rev A
Measured surveys for developers, designers and architects
Your survey is the foundation of your design. Building, topographical and utility surveys for design teams across Scotland.
Add virtual tours, planning visuals and surveyed camera views, built from the same survey.
- Team surveying since 1989
- Specification agreed up front
- Edinburgh, Glasgow and across Scotland
What we survey
Existing-condition information, ready to design on.
Tap a survey to start a quote with it already filled in.
Topographical surveys: request a quote
Levels, boundaries and site features for planning and design, tied to Ordnance Survey coordinates.
Underground utility surveys (PAS 128): request a quote
Buried services located with GPR and electromagnetic detection and mapped to PAS 128 before design or groundworks, with the limits of detection stated.

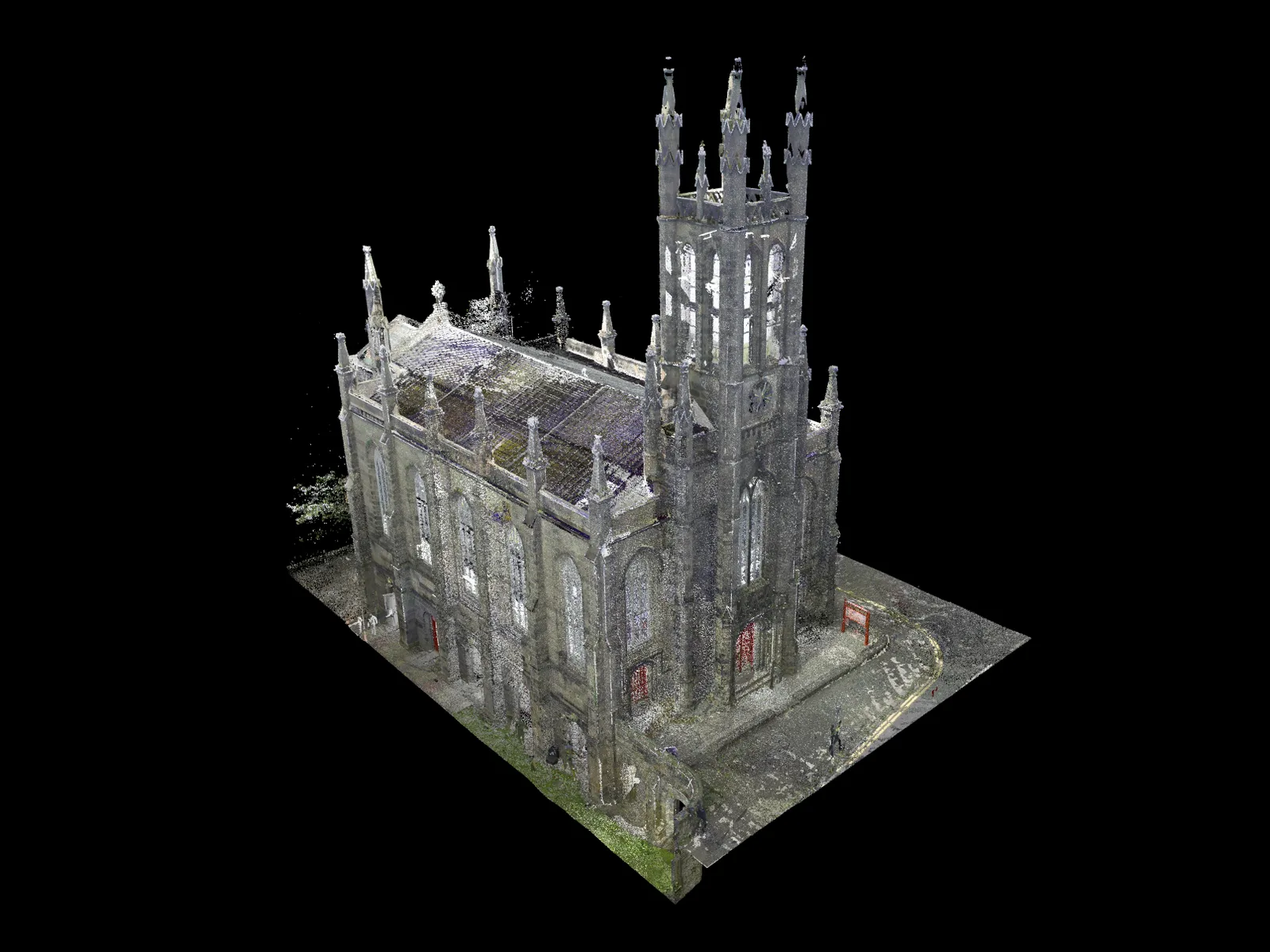

Point clouds: request a quote
Registered scan data for coordination and design, delivered in the format you work in.
3D models and 2D drawings: request a quote
3D models and 2D CAD drawings produced from the survey data, with the level of detail agreed up front.
Drone surveys: request a quote
Orthomosaics, surface models and point clouds for large or hard-to-reach sites.
Tours and visualisation: request a quote
Virtual tours, planning visuals and surveyed camera views, built on the survey.
Planning a property or construction project?
Measured building surveys, topographical surveys, underground utility surveys, point clouds, 3D models and 2D drawings, drone surveys, and tours and visualisation, across Scotland and further by arrangement. Tell us what you need and we'll quote.
Request a quote
Phase ProjectsEngineering verification and visualisation
Planning an offshore, industrial or infrastructure project?
Phase Surveys does property and construction surveys for design teams. Phase Projects handles high-consequence industrial and offshore projects.
Visit Phase Projects
Add-on to any survey · Visualisation
See it as it is, and as it will be
Walk the building or site as it stands without a visit, or see the proposed design in its real setting before it is built. Both are built on the survey data.
Ask about visualisationAs it isVirtual tours and 3D scenes
Matterport tours
A familiar walk-through tour, captured with professional-grade Matterport devices and shared with a link.
Bespoke interactive tours
Traditional 360° panoramas, shot on professional DSLRs with Nodal Ninja panoramic heads, with drone aerials, built into a tour designed around your project.
Free-roam 3D tours
A lifelike 3D scene you can move through freely, in any direction. Built as a Gaussian splat, captured with PortalCam, and by drone where the site suits it.
As it will beSurveyed camera views, planning visuals and CGI
CGI stills and animations
The proposed design in its real setting, built on the surveyed model so what you see is where it will be.
Planning visuals
Images for an application that show what will actually be there, from the viewpoints that matter.
Surveyed camera views
Photographs from surveyed camera positions, with the proposed building placed using those surveyed positions. The kind planners ask for on bigger schemes.
Tours load from Matterport (US) only when you press a button.
Projects
Examples of our work
Plain answers
Why survey quotes differ, and how to choose.
Two quotes for the same building can differ a lot, and a cheaper one is sometimes the right call. The difference usually comes down to four things, and we can guide you on which ones matter for your project.
01
Accuracy
A survey to a local accuracy of 10–30 mm is quicker than one to 3–5 mm. Both are valid. Budget will often decide it, and for a simple building that can be the right call. For a historic church façade the difference is real, so bear that in mind before choosing on price.
Just as important is control: a properly controlled survey ties the whole site into one framework, from the building to the topography and the buried services, so small errors don’t build up from one side of the site to the other. Without control, a survey can still come out fine. The trouble is that nothing shows whether it has: each part can look right on its own and still drift across the site, with walls that don’t meet, levels that don’t tie in, or a drain that’s off line by the time it reaches the road. If it has drifted, you usually find out when the design is set out on site. We can help you make that call.
02
Measured or assumed
Not everything on a drawing is always measured. Wall thicknesses, rooms without access and roof detail are sometimes assumed, and walls can be drawn square when they aren’t. On a drawing, assumed detail looks exactly like measured detail, until someone opens up a wall. Our survey statement tells you which is which.
03
Checking
Closing the loop back to the first station is how errors get found. Skip it and nothing on the drawing tells you something is wrong. It shows up on site, when it’s expensive. We close the loop and check the figures as standard.
04
Who is on site
A trained field surveyor carries out every survey, with a senior surveyor behind each job. With today’s mobile scanning, the data is checked before we leave site, and the office can review it remotely while we’re still there, so gaps can be picked up on the day rather than needing a return visit. Our surveyors also see the things a design will trip over: a drain that doesn’t line up, a wall that isn’t square.
- Controlled: the whole site in one framework. Closing the loop shows how well it fits.
- Without control: it may be close, but the error can grow across the site, and nothing on the drawing shows how far it’s out.
Local or global? An accuracy figure on its own doesn’t tell you much. Local accuracy is how well nearby points agree, for example within a room. Global accuracy is how well everything agrees across the whole site. A survey quoted at 10 mm room by room might hold across the site, or might not, and without control nothing shows which. If a quote gives a single figure, ask whether it’s local or global, and how it was checked.
A quicker survey is usually fine for
- Early feasibility and massing studies
- Estimating floor areas for a sales brochure
- Internal layouts where nothing structural changes
- Sites where the design has plenty of room to move
Pay for accuracy when
- You are building on or close to a boundary
- Levels drive drainage, access or flood design
- New work has to fit existing structure or services
- Fabrication or prefabricated parts depend on the dimensions
Your survey is the foundation of your design. Everything that follows, from planning drawings to setting out on site, is built on it. So compare what each quote includes, not just the price: the specification, the control, and what is measured rather than assumed. If a cheaper survey is right for your project, we’ll say so.
If a quicker survey suits your project, we’ll tell you. Already have a survey? You don’t want to find out it wasn’t good enough once the design is built on it. If you’re not sure, send it over and we’ll give you a straight view. If it’s fine, we’ll tell you.
Survey statement
Know what your survey covers
Each survey comes with a short statement setting out the specification it was carried out to, the method used, its intended use and its limitations.
- The specification it was carried out to
- The method used
- Its intended use
- Its limitations
Every survey has limits. One that doesn’t state them isn’t more accurate. It just hasn’t told you where they are. Ours are written down.
Surveys are checked before they leave us, and the statement records who checked it.
Survey Statement
What every statement covers. Each entry is filled in for the job.- Specification
- Method
- Intended use
- Limitations
- Checked by and date
Our team has been surveying since1989
Who's behind it
From measured buildings and development sites on this website, to offshore platforms and process plant as Phase Projects. The same survey team and the same control standards, whatever the size of the job.
“I’ve been surveying since 1989.” Chris Reid, Managing Director
About us, and our kit from 1989 to today
Public and Employers’ Liability insured. Details on request.
Request a quote
Tell us what you need
Tell us what the survey is for, and we’ll quote the specification it needs, not just a price.
